WARMTHON Tension-Bolt Stay

WARMTHON

Tension-Bolt Stay for Drummer's Palette

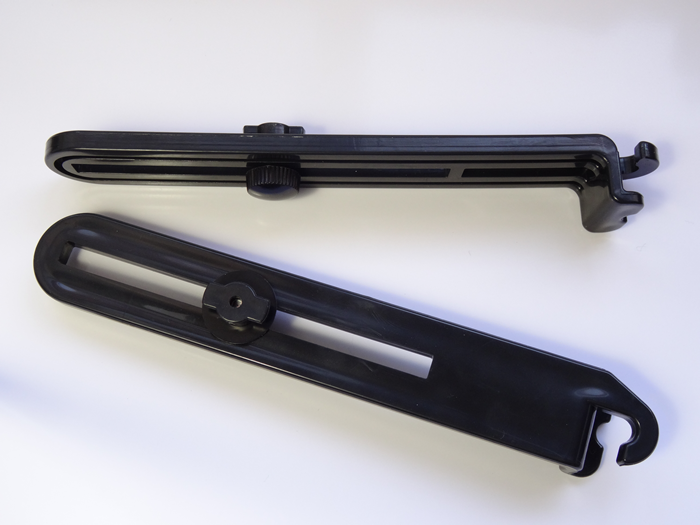

Drummer's Palette Tension-Bolt Stay Pictures

The Tension-Bolt Stay is an optional part of the Drummer's Palette.
It's not necessary to unscrew the tension-bolt.

Drummer's Palette Tension-Bolt Stay Drummer's Palette Tension-Bolt Stay Drummer's Palette Tension-Bolt Stay
Description
Details This Tension-Bolt Stay is an optional part of the Drummer's Palette.
The mounting stay has a flexible setting by slide mechanism.
It's not necessary to unscrew the tension-bolt when you are mounting to tension-bolt.

[NOTE]
  • Usable tension-bolt diameter is up to 0.23"(6mm).
  • More than 0.8"(20mm) space between hoop and lug is required for mounting.
  • The sticks, brushes and stick tray are not included with this product.
  • We reserve the right to change these specifications without notice.
Warning
  • The product is to be used only for its stated purpose.
  • Do not tighten the tension-bolt when it is fitted with the mounting stay. It could break the parts and/or drum and could possibly cause injury.
  • Do not move the drum when it is fitted with the mounting stay. It could break the parts and/or drum and could possibly cause injury.
  • Do not over tighten the slide-adjusting screw. It may break the parts, and could possibly cause injury.
  • Do not install the tray in such a position where it can come into contact with a hand or foot. It could possibly cause injury.
  • Do not place heavy items on the mounting stay. It could break the parts and/or the drum and could possibly cause injury.
  • When storing, please remove the tension-bolt stay.
  • Please keep the product out of the reach of children.
  • Keep the tension-bolt stay away from heat, humidity, and direct sunlight.
    Do not place the product in direct sunlight in a vehicle for extended periods.
  • All measurements are approximate and the actual dimensions may vary slightly.
Instruction
  1. Loosen the slide-adjusting screw of the mounting stay.
  2. Insert each coupling part of the mounting stay into the holes on the back of the tray.
  3. Once the two mounting stays are inserted, mount the tray to the tention-bolt.
  4. Tighten the slide-adjusting screw lightly after setting.
[NOTE]
Do not over tighten the slide-adjusting screw.
Specifications Quantity:
2 pieces (1 pair)

Material:
ABS (Screw:Steel)

Size:
approx. W6.1" x D0.87" x H0.73"
(approx. W155mm x D22mm x H18.5mm)

Weight:
approx. 0.7oz(20g)

Usable tension-bolt diameter is up to 0.23"(6mm).
More than 0.8"(20mm) space between hoop and lug is required to mounting.
Price Open price
Utility Model Patent(Japan) 3207510
Where To Buy It can be purchased from these websites.

Steve Weiss Music(USA)
www.steveweissmusic.com

Trumslagaren(SWEDEN)
www.trumslagaren.se

NYA MUSIK(SWEDEN)
www.nyamusik.se

DRUMS PROSHOP GATEWAY(JAPAN)
www.gatewaydrumline.com

DRUM SHOP ACT(JAPAN)
www.drums.co.jp

SHIMOKURA MUSICAL INSTRUMENTS CORPORATION (JAPAN)
www.shimokura-gakki.com

amazon
Amazon USA

ebay
ebay

Reverb
Reverb
You can also buy it here by PayPal payment.
Note:
We currently do not accept the order from EEA.
Contact Us CLICK HERE
Please feel free to ask us any questions.
Video

https://www.youtube.com/watch?v=MQJs322C9qc
